Products
PDA

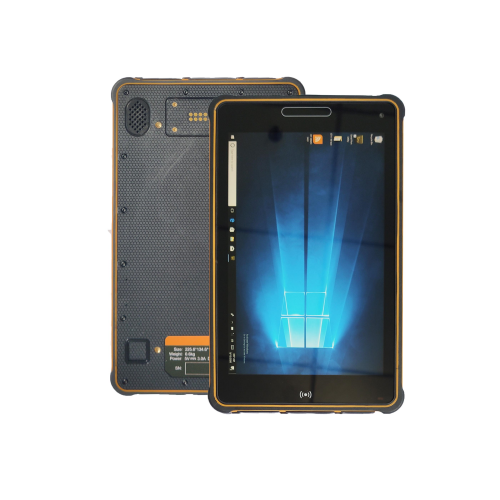

TS8-W
Industrial Tablet
Window | Android OS
LAN | BT | GPS | 4G
8inch HD Touch Screen
NFC | UHF | Fingerprint
Camera | 1D&2D Scanner
Large high-capacity battery
IP 65 , 1.2m fall-proof
Window | Android OS
LAN | BT | GPS | 4G
8inch HD Touch Screen
NFC | UHF | Fingerprint
Camera | 1D&2D Scanner
Large high-capacity battery
IP 65 , 1.2m fall-proof
-
Sepecification ITEM DESCRIPTION OS Windows 10 home/pro/iot CPU intel cherry trail Z8350 RAM/ROM 4GB/64GB LCD 8 inch1920*1200；
max 400 nitsTouch screen capacity touch panel Camera 2M/5M Power and battery Battery capacity 7800mAh 3.5*1.35mm, 5V 3A DC in put WWAN 4G LTE, 3G WCDMA, GSM, Quectel EC25AUGC
4G Fre:
FDD: B1,B2, B3, B4, B5, B7, B8, B28
TDD: B40,B34
WCDMA:B1, B2,B4,B5,B8
GSM: B2, B3, B5, B8GPS baidou,GPS, glonass Wifi 802.11a b c, g,n wireless internet Wireless AP ( Mobile AP )2.4G, 5G BLUETOOTH 4.0 version NFC 13.56 MHz, distance 5cm or above SPEAKER 1.5 watt Sensor 1. light sensor
2. acceleration/gravitySize 225.6*135.6*13.3mm Weight 0.6kg Multi-media
(Hardware decoding)Photo Viewer, ie: BMP, JPG, GIF, PNG Video Format, ie: MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) Audio Format, ie: MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license) language multi language Interface

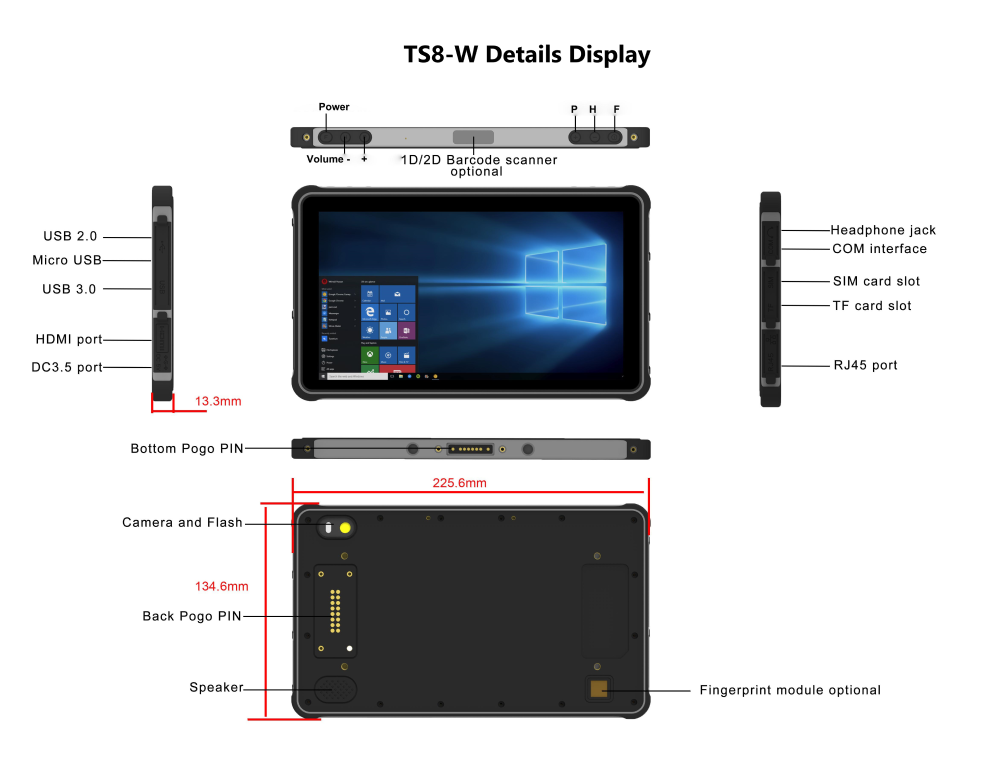

in/out port1.USB2.0*1 USB3.0*1
2. Micro USB*1
3. RJ45*1 need special cable (optional)
4. bottom pogopin*1, USB and serial
5. back pogopin*1
6. DC*1 3.5*1.35
7. microphone+earphone
8. mini HDMI
9.RS232*1 (need special cable, optional)
10. micro SD*1
11. SIM card*1Pogopin definition 1.16pin back of cover, include （1USB, 1 RS232， 1 UART， 3.3V, 5V)
2. 8pin in bottom； （1USB, 1 RS232， 1 UART， 5V)Casing material ABS/PC/rubber TPU/aluminum Button V+ -, Power, P, F, H 2D barcode module
(optional)EM 2096 (N3680 in jacket) UHF(optional) 900MHz Fingerprint
(optional)support Front NFC (optional) under the screen, the distance is 3-5cm, mifare one is optional High precision GPS(optional) 0.25-1 meter high precision GPS, support GPS, beidou, glonass Accessories 1. USB cable optional
2. charger
3. handstrap optional
4. car holder optional
5. docking station optional
6. car charger optional
7. white box, no logoProof rate 1. water proof IP65
2. Drapping proof 1.2 meterTemperature 1. storate temperature -25 ~80℃
2. operation temperature -20 ~ 60 ℃
