PDA

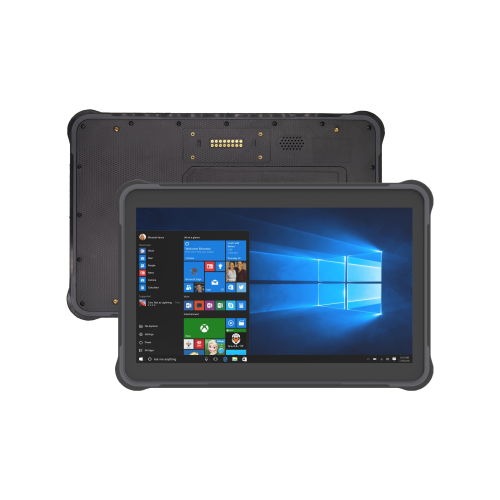

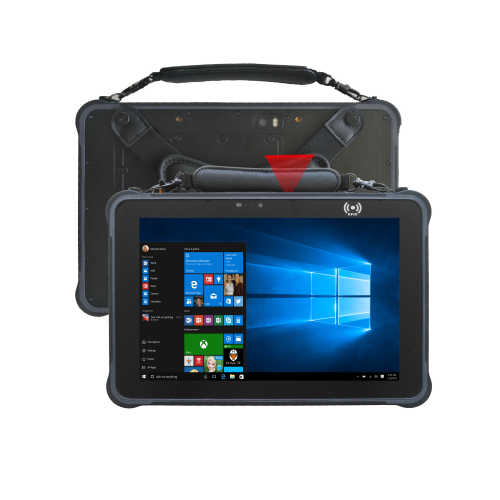

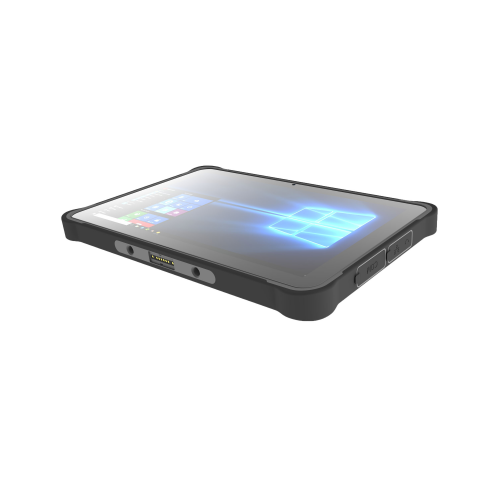

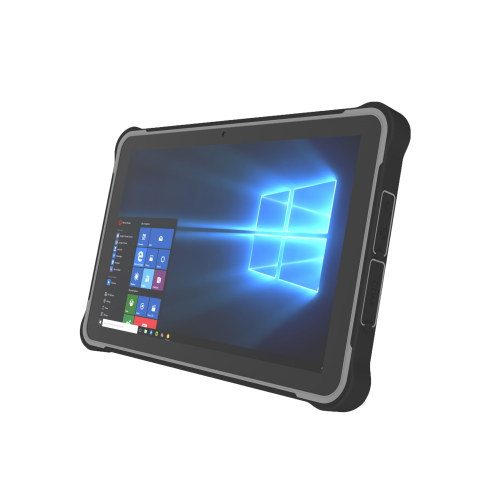

TS11-W
Industrial Tablet
Window | Android OS
LAN | BT | GPS | 4G
10.1inch HD Touch Screen
NFC | UHF | Fingerprint
Camera | 1D&2D Scanner
Large high-capacity battery
IP 65 , 1.2m fall-proof
Window | Android OS
LAN | BT | GPS | 4G
10.1inch HD Touch Screen
NFC | UHF | Fingerprint
Camera | 1D&2D Scanner
Large high-capacity battery
IP 65 , 1.2m fall-proof
-
Specification ITEM DESCRIPTION OS Windows 10 home/pro/iot CPU intel cherry trail Z8350 RAM/ROM 4GB/64GB LCD 10.1 inch1920*1200；
max 500 nits sunshine readableTouch screen 10 point touch
support tylus
support thin glove touchCamera 2M/5M Power and battery battery total capacity 10500mAh 8400+2100
play video 6 hours, working 8-10 hours charging 6 hours.
Stand by 72 hours
12000mAh+2100mAh Optional3.5*1.35mm, 5V 3A DC in put WWAN 4G LTE, 3G WCDMA, GSM, Quectel EC25AUX
4G LTE-FDD: B1,B2, B3, B4, B5, B7, B8, B28
TDD: B40, B34
WCDMA:B1, B2,B4,B5,B8
GSM: B2, B3, B5, B8GPS baidou,GPS, glonass wifi 802.11a b c, g,n wireless internet Wireless AP ( Mobile AP )2.4G, 5G BLUETOOTH 4.0 version NFC 13.56 MHz, distance 5cm or above SPEAKER 1.5 watt Sensor 1. light sensor
2. acceleration/gravitysize 275*178*18mm Multi-media
(Hardware decoding)Photo Viewer, ie: BMP, JPG, GIF, PNG Video Format, ie: MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) Audio Format, ie: MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license) Language multi language Interface
in/out port1.USB*2
2. Micro USB*1
3. RJ45*1
4. bottom pogopin*1, USB and serial
5. back pogopin*1
6. DC*1 3.5*1.35
7. microphone+earphone
8. HDMI

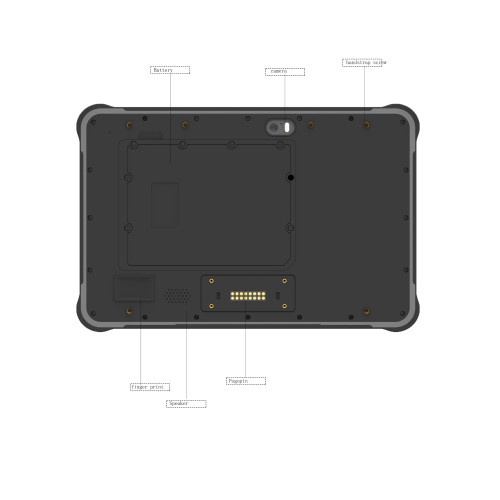

9.RS232*1Pogopin definition 1.16pin back of cover, include （1USB, 1 RS232， 1 UART， 3.3V, 5V)
2. 8pin in bottom； （1USB, 1 RS232， 1 UART， 5V)
VESA hole 75*75mm or 90*90mmcasing material ABS/PC/rubber TPU/aluminum button V+ -, Power, P, F, H 2D barcode module honeywell N3680 UHF 900MHz Fingerprint support Front NFC under the screen, the distance is 3-5cm, mifare one is optional High precision GPS 0.25-1 meter high precision GPS, support GPS, beidou, glonass Accessories 1. USB cable
2. charger
3. handstrap
4. car holder
5. docking station
6. car charger
7. white box, no logoProof rate 1. water proof IP65
2. Drapping proof 1.2 meterTemperature 1. storate temperature -25 ~80℃
2. operation temperature -20 ~ 60 ℃
