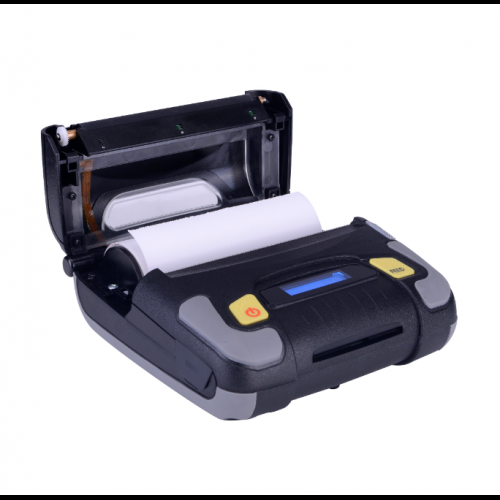

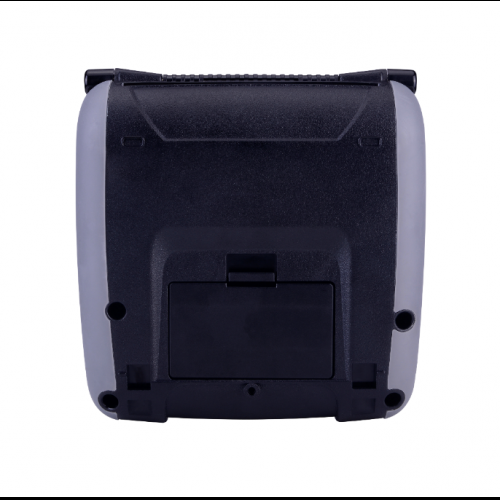

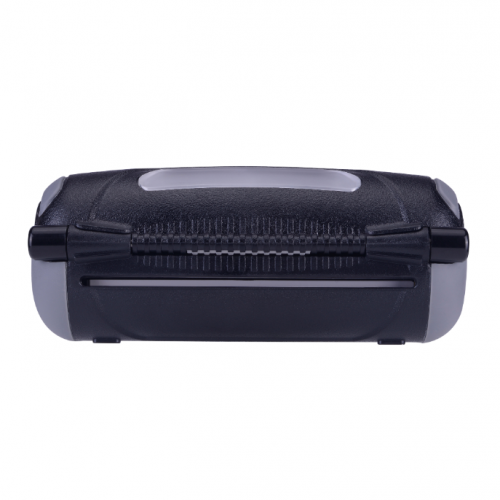

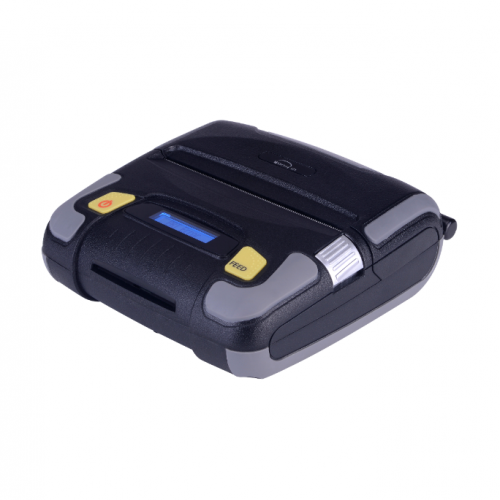

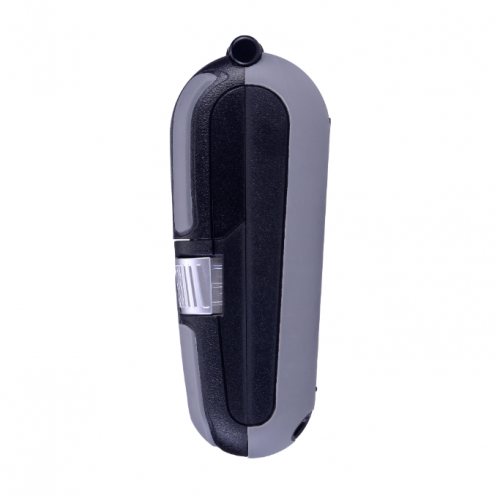

WSP-i451 4inch thermal printer

Features:
Durable Rugged Design
Water-resistant construction.(IP54-Certifed)
1.8m drop resistant
High spped(110mm/sec,MAX)
Wireless LAN(802.11 b/g) interface [option]
Support Magnetic Stripe Reader(1&2&3 tracks)[option]
Support Graphic LCD(128X32dots) with Blue LED Backlight
Support text and graphic prnting
Easier paper roll loading printing
Intuitive LED‘s indicate Power(on/off),Error and Battery Status
Printer door open & Paper-out sensor
High performance:Print labels & Support back feeding
In field programming-Update Firmware,Download Fonts and Logos
Flow control:Software(XON/XOFF)
  • Specification:

    Item

    Specification

     Printing method

     Direct thermal line printing

     Characters per line

    Font A:69cpl/Font B: 92cpl /Font C: 104 cpl
    KOR, CHN,JPN:34CPL

     Optional Characters

     Simplified/Traditional Chinese, Arabic, Cyrillic, Russian, Tukish, Greek,
     Japanese, Persian, Latin9 and Others upon request.

     Character size

     Eng. : 9x24dots, 12x24dots
     Kor. : 16x24dots [24x24dots]

     Resolution

     203dpi, 8dots/mm

     Print width

     4-inch (72mm, 576dots)

     Printing speed

    110 mm/sec (MAX)

     Dimensions (WxDxH)

     152 x 152 x 63 mm

     Weight

     569g [standard]
    609g [MSR option]

     Interface

     UART(RS-232C or TTL), Bluetooth Ver 2.1 + EDR,
     IrDA Ver1.0(SIR)[option], USB[option]
     Wireless LAN interface(IEEE802.11b/g) [option]

     Paper supplied

     Thermal roll paper (113mm wide, 50ø),
     Paper thickness : 60±5µm

     Barcode

     1-dimension : Code128, Code39, I2/5, Code93, UPC-A, UPC-E,
                               EAN8, EAN13, CODABAR
     2-dimension : PDF417, QR Code, DATA Matrix, Micro PDF417,
                              Truncated PDF417

     Driver

     Microsoft Widows XP / VISTA / 7
     Windows CE, Linux, Android, Blackberry

     Black mark

     Support black mark detection

     H/W Spec.

     MCU : 32bit RISC, FLASH : 4M bytes, RAM : 8M bytes

     Receive buffer size

     1M bytes

     MSR [option]

     ISO 7810/7811/7812
     1&2 or 2&3 Track Reading

     LCD

     128*32 Dots FSTN(Blue LED Backlight)

     Battery

     Rechargeable 7.4V DC 1,400mAh / 1,800mAh / 2,200mAh (Li-ion)

     Battery duration

     1 hour continuous printing

     AC adapter

     Input(100~250VAC, 50~60Hz)
     Output(8.4VDC/0.8A), 4hours full charge time

     Operating temperature

     -10°C ~ 50°C

     Storage temperature

     -10°C ~ 70°C

     MCBF(Mean Cycle Between
     failure)

     Mechanical

     37,000,000 lines

     Head

     Approximately 50Km
